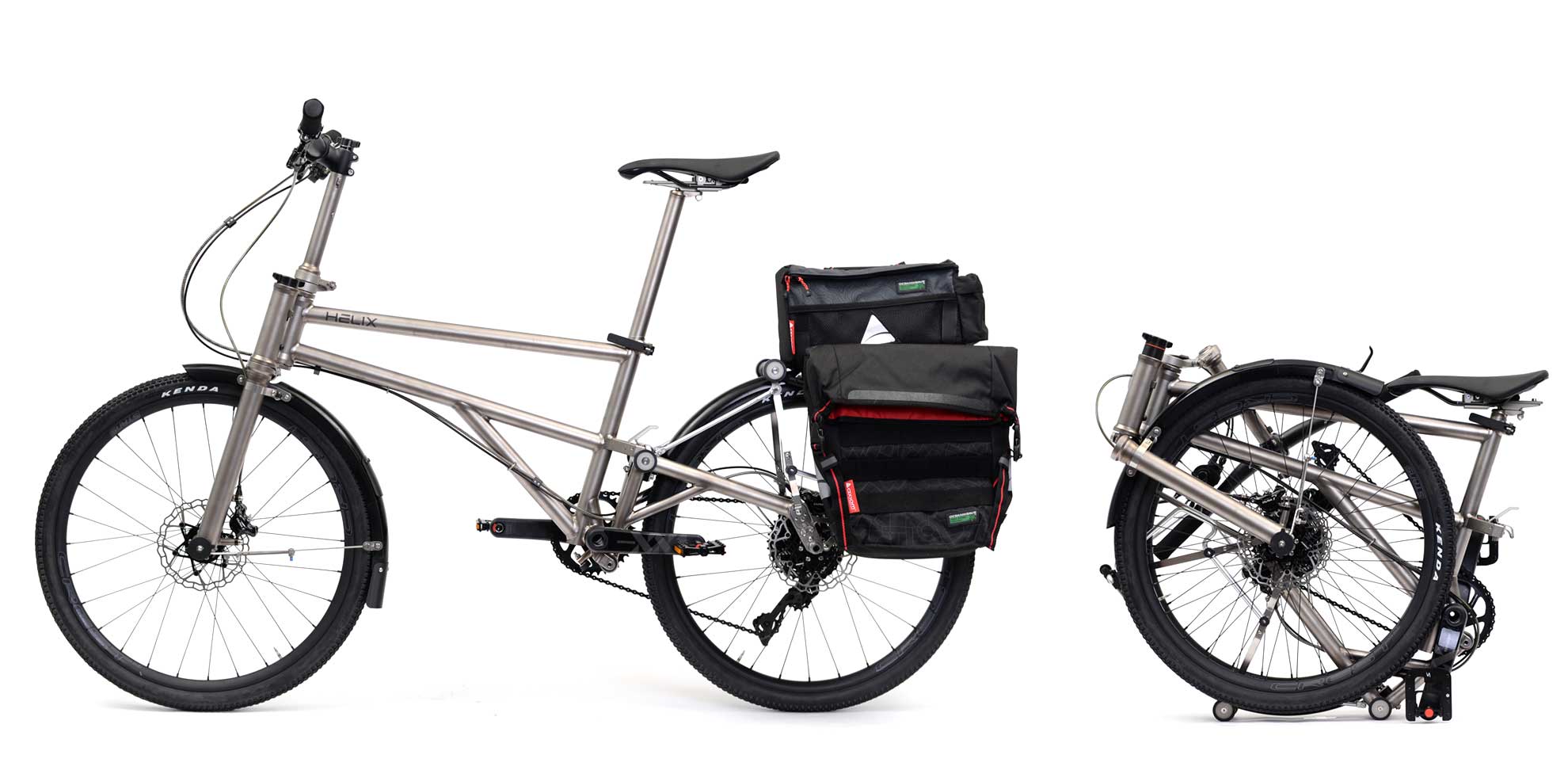

• bike folded


    The World's Best Folding Bike

  • slidebg1



  • slidebg1

    Titanium Frame

  • slidebg1

    24" Wheels

  • slidebg1

    Made In Canada


Was a success!

Thank you for your support!

Find Out More


Helix features


Helix was designed from the ground up to be the smallest and most compact folding bike in the world.

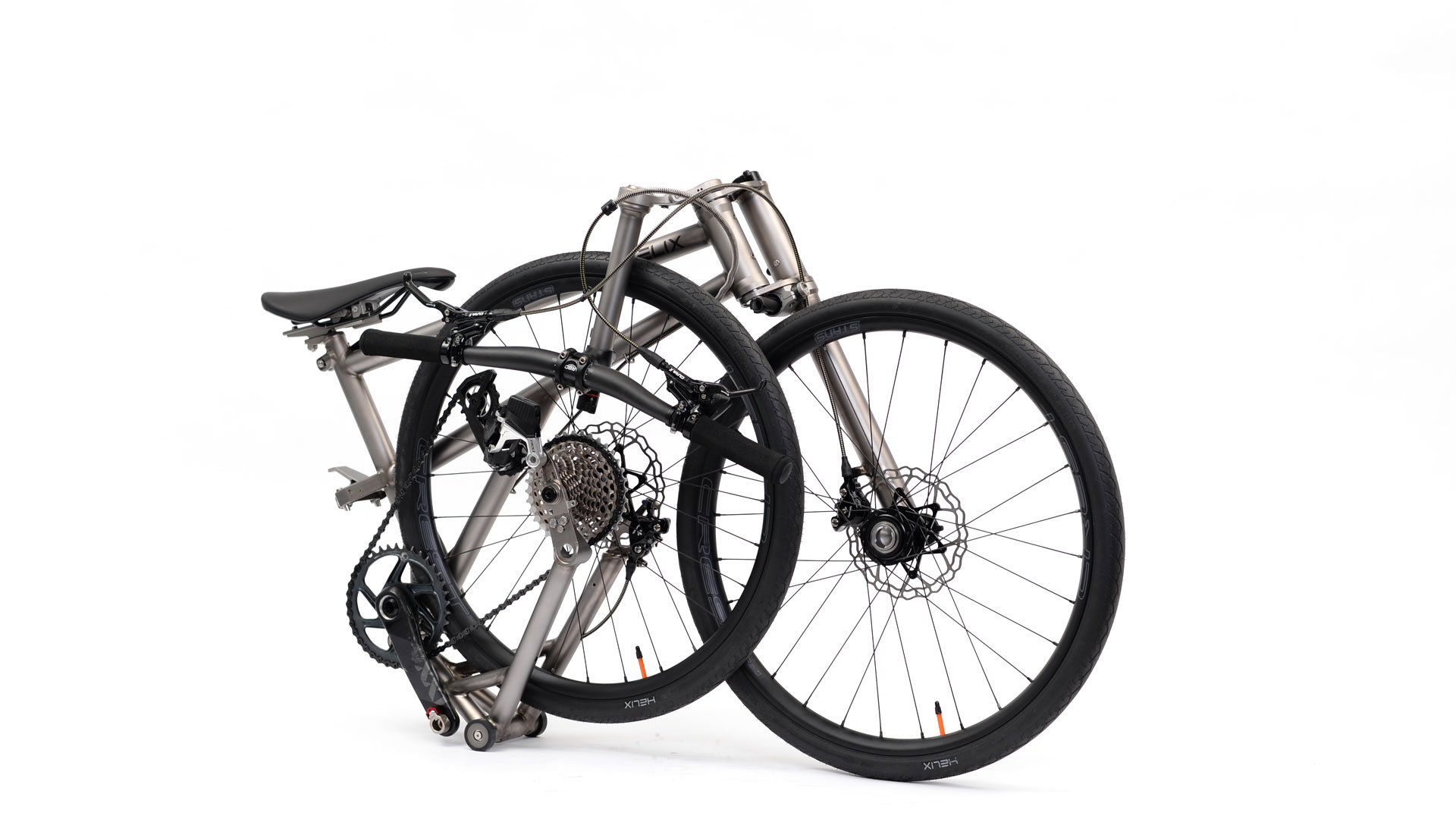

Helix folds down to the size of its wheels.

23" × 26" × 9.5"

Patent pending side-by-side folding puts the wheels beside the frame and between the cranks — it's the most efficient use of space possible.

Other folding bikes have smaller wheels but don't fold as small.

Helix features


Helix was designed to go everywhere, whether it's the subway, the trunk of your car or a suitcase; it will be lifted often, so it must be lightweight.

20 Lbs

We've obsessed over every detail to make sure Helix is as light as possible without compromising everyday durability.

Helix features


Our patent pending spring loaded locking mechanisms pass through the fork and steerer tubes to create a safer lock. There is a secondary safety in place. The design is inherently safe.


Pass-through locking design with secondary safety ensures a worry free ride

More rigid

Spring loaded locking device compensates for wear so Helix always feels solid

One-Piece Frame

Side-by-side folding allows for a one-piece hinge-free frame that won't flex or creak while pedaling

Helix features

Easier to Use

The combination of side-by-side folding and our patent pending helical hinges allow Helix to be folded with ease.

Once folded, it can be rolled on its own wheels and has an integrated stand for when you stop.

Folds in any order

The rear wheel, front wheel and handlebar can be folded in any order

Pedals won't get in the way

No need to rotate pedals — Helix's wheels fit right in between them

Rolls when folded

Helix is easy to carry and even easier to roll

Take it with you everywhere


Ride from home to the subway or go the whole way. Store Helix under your desk so it won't get stolen outside.


Go away for the weekend, Helix is so small it will fit in even the smallest car — with room to spare.

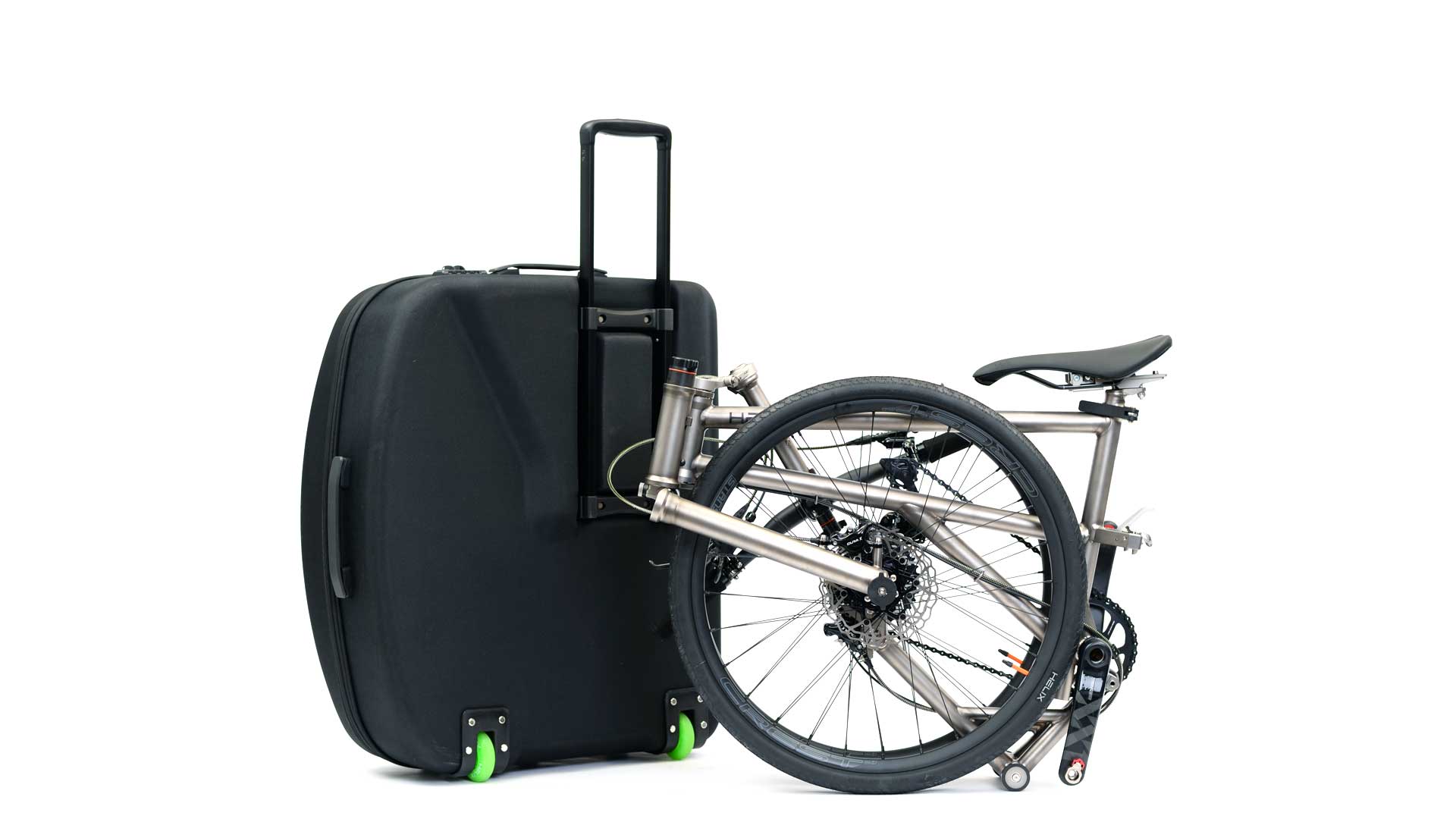

Pack Helix in your suitcase — it will fit! Experience your destination in a whole new way.


Helix Animated

Helix will support a range of bicycle accessories such as mud guards, racks, lights and more.

Helix uses interchangeable dropouts to allow for switching between all drivetrain options.

More detailed specifications including gear range and geometry can be found here.

Helix will be available in 3 specs: 10 speed derailleur, 11 speed internal gear hub, and a single speed.

All specs will include the following:

Frame, fork and swingarm 3Al-2.5V CWSR titanium
Headset VP, angular contact bearing
Stem ART, 50mm, 17°, 3D forged
Handlebar Premetec 7-Series Al, 31.8mm, 580mm width
Brake Levers Avid BB5
Cables JagWire Pro Series, internally routed
Seatpost TranzX, 3D forged, 27.2mm x 400mm
Saddle Velo VL-1738 (139 x 280)
Seatclamp Helix
Brake Calipers TRP Spyre
Brake Rotors Front: TRP IS mount 160mm or Shimano XT RT76 IS mount w/alloy spider 160mm (upgrade)
Rear: TRP IS mount 160mm or Shimano SLX RT67 Centerlock 160mm (upgrade)
Front Hub Chosen 28h, sealed bearing, IS disk mount
Crankset SRAM S-1000 Direct Mount, GXP, 165mm
Chainring TBA or Wolf Tooth Components 42t (upgrade)
Chain FSA K-Force Light 10 Speed, hollow link, nickel plated
Pedals Suntour Folding or Wellgo M111 QRD-1 (upgrade)
Wheels Shining DB18
Spokes Pillar, stainless, black Ti plated
Nipples Pillar, brass
Tires Kenda Kwest 24" x 1.5" (ETRTO 40-507), 38 tpi, 75-100 psi
with puncture protection and reflective sidewall
Approximate Folded Dimensions 23" x 26" x 9.5"
Maximum Weight Limit 250 lbs (113 kg)
Rear Hub TBA, 142mm x 12mm thru-axle, 28h
Rear Derailleur SLX M675, Shadow+ 10 Speed
Cassette Shimano SLX HG81 10 Speed (11-36t)
Shifter Shimano Zee M640 Rapid Fire
Approximate Weight 21.1 lbs (9.57 kg)
Price Estimated $1600 USD
Rear Hub Alfine 11 SG-S700-L (22t)
Shifter Shimano Alfine Rapidfire Plus SL-S700
Chain Tensioner Shimano Alfine CT-S500L
Approximate Weight 23.7 lbs (10.75 kg)
Price Estimated $1900 USD
Rear Hub TBA, 142mm x 12mm thru-axle, 28h
Rear Sprocket TBA, 18t
(can be replaced with a larger or smaller sprocket or converted 9, 10 or 11 speed derailleur)
Chain Tensioner Shimano Alfine CT-S500L
Approximate Weight 20 lbs (9.57 kg)
Price Estimated $1500 USD


Titanium is the only material for a folding bike that is lightweight, durable and can last forever.

Titanium is lightweight, durable, remarkably corrosion resistant and has excellent ride characteristics. It is an exceptional material for bicycle manufacturing.

A titanium frame can rival the weight of a high end carbon frame but with a level of durability that is unparalleled. Folding bikes are constantly being handled; they are folded, lifted, put in trunks and bags — durability is a necessity.

Titanium is currently seeing a resurgence in local bicycle manufacturing. It is an easier material to work with when manufacturing bicycles in low volume; it doesn't need to be heat treated or painted which are both expensive processes.


Helix is welded in an inert enclosure to ensure the best possible welds

HELIXSee it in Action


Our StoryWe want to make Folding bikes awesome!

There's nothing quite like the feeling of riding a bike.

Bikes are awesome, but there are things about owning a bike that aren't so great. Bikes get stolen. Bikes that are locked up get vandalized or have parts stolen. You can't take your bike on the bus, subway or train during peak hours. Taking your bike on a trip means there is little room left for other things.

Are folding bikes the answer?

They could be but folding bikes come with their own set of compromises. They ride funny because they have small wheels and compromised geometry; they're heavy; they're awkward to use; and worst of all, they don't actually fold that small.

We set out to change all of that.

Three years ago we started working on a vision of the perfect folding bike — a bike that is lightweight, durable, rides and feels like a full-size bike, is safe and easy to use and folds incredibly small.

We feel that we've finally created the best combination of rideability, ease of use and compactness - with no compromises.

Helix is a radical departure from conventional bike design. It is unlike any bicycle in the world.

We're ready to bring our vision to the world.

On October 1st, 2015, Helix was successfully funded on Kickstarter! 1,069 backers pledged $2,262,621 CAD to make Helix a reality.

Helix is the most funded bicycle in Kickstarter history.

Made in Canada

Making folding bikes is more difficult than conventional bikes. There are only a handful of Asian bicycle manufacturers that have the skill set to do it properly.

Helix is very different from other bikes, even folding bikes. A product like Helix needs close attention to detail to be manufactured successfully and we believe the only way to do it is locally, with our designers and engineers overseeing the process in person everyday.

We won't be building Helix alone, we'll be working closely with experts in bicycle design and manufacturing to ensure Helix is a success.


Helix will be available for retail pre-order on November 1st, 2016
